Use your model
After uploading a model to the Nx AI Cloud, it becomes available to assign to any device in your account. Follow these steps to assign it and verify deployment.
Step 1: Find the model in the catalogue
From the sidebar, open the Models page. Your uploaded model appears in the list alongside the pre-built catalogue models.

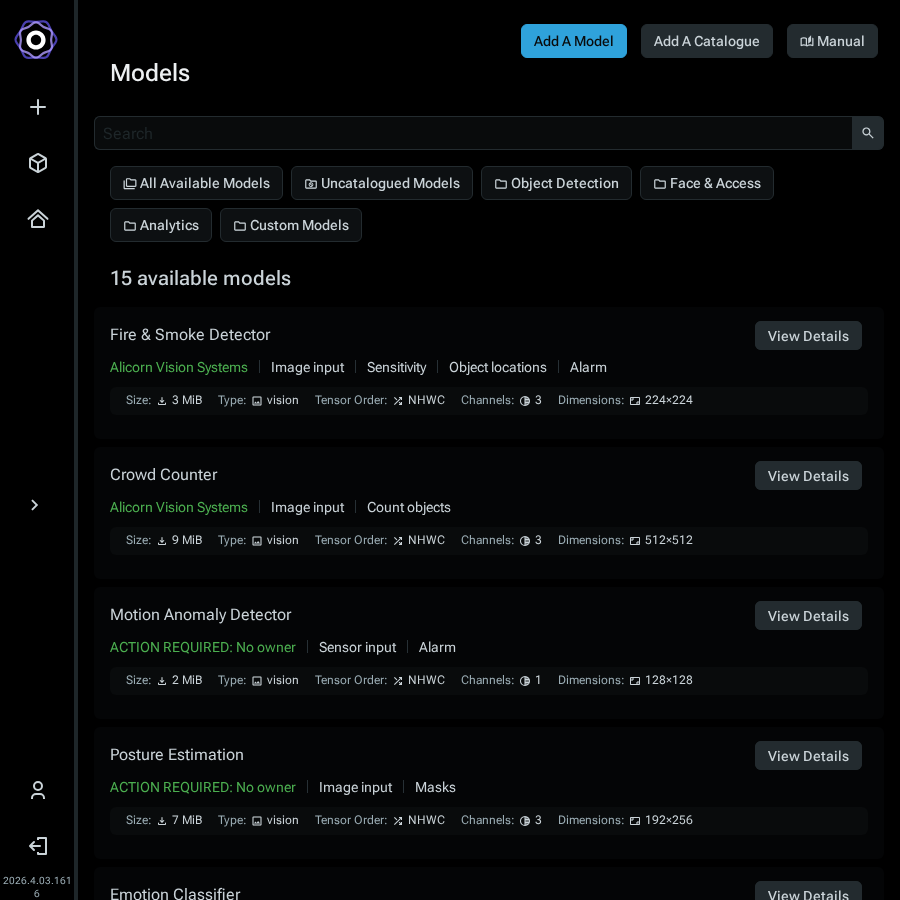

Models page: your uploaded model appears here once conversion is complete
Step 2: Assign the model to a device
Navigate to Sites, select an online site, then open the Devices tab and click a device. On the device detail page, click Add a New Pipeline (or the replace button on an existing pipeline) to open the model catalogue in assignment mode.
Device detail page: click Add A New Pipeline or Switch to assign or replace a model.
Find your model and click Add to Pipeline. The model is deployed to the server hosting that device in the background.

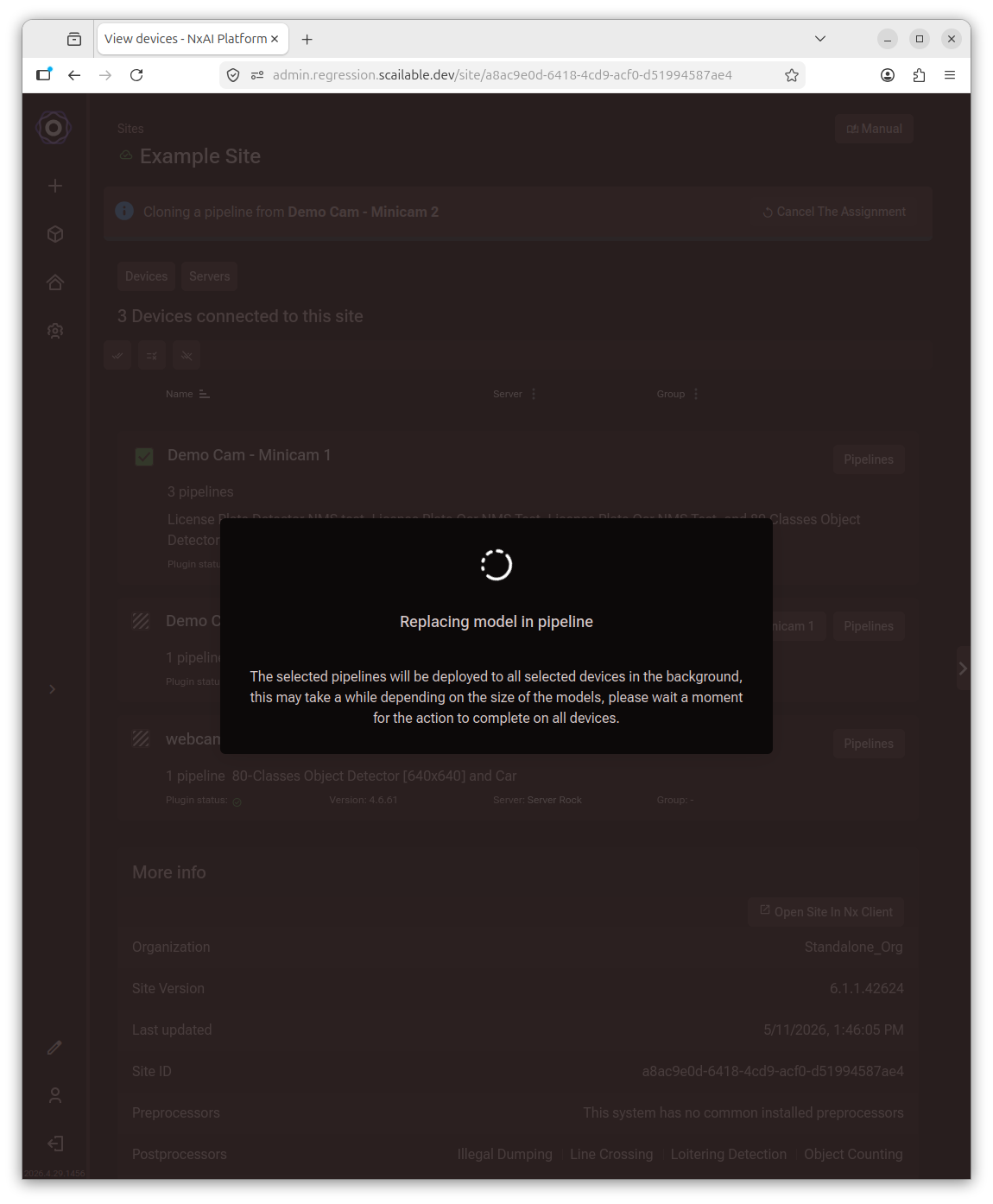

Pipeline deployment in progress: this runs in the background and may take a few seconds depending on model size.
Clone a pipeline to multiple devices
Once one device has a pipeline configured, you can copy it to other devices on the same site without opening each device individually. From the site Devices list, hover over a device row to reveal the Clone This Pipeline button.
Hover over a device row to reveal the Clone This Pipeline button.
Click Clone This Pipeline. A banner at the top of the page confirms which pipeline is being cloned. Tick the checkboxes next to the devices you want to receive the pipeline.
Select the target devices, then click Assign Pipeline to continue.
A confirmation dialog warns that existing pipelines on the selected devices will be overwritten. Click Confirm to proceed.
Confirm the replacement: this overwrites any existing pipeline on the selected devices.
After confirming, the pipeline is deployed to all selected devices. Once complete, all devices in the list show the cloned pipeline.

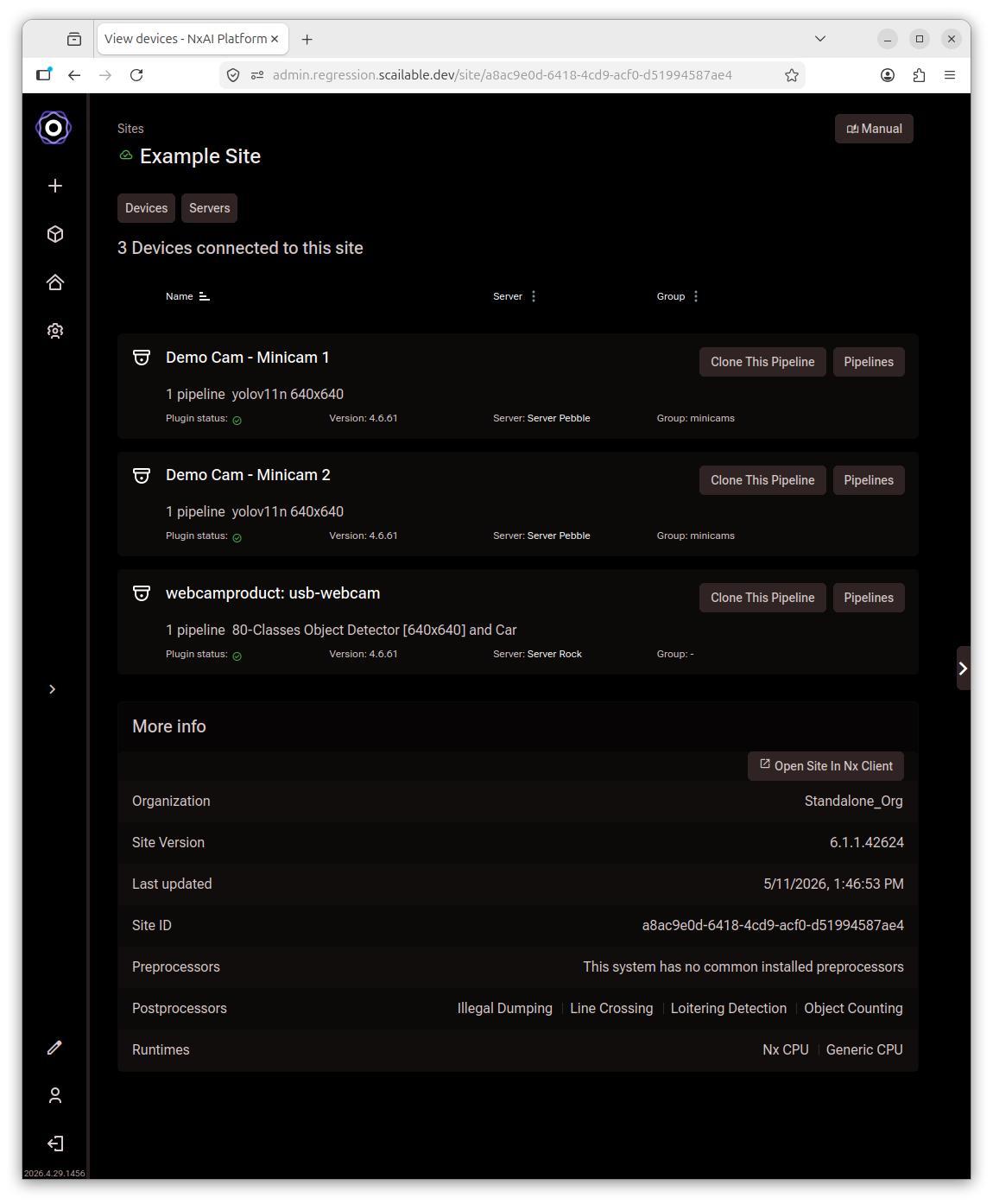

All selected devices now run the same pipeline.
Step 3: Verify deployment
After assignment, the device detail page shows the active pipeline.
The model is now running on the device. Open the Nx Meta Client, switch to the Objects tab for that camera, and you should see the model's output (bounding boxes, overlays, or counts) within a few seconds.
