Model Settings

Configure the settings available for a model that is active on a device.

A device with a single model pipeline

A model that is active on a device can have multiple settings. These settings depend on the capabilities of the model or the server.

Changing any of these settings marks the pipeline form to indicate the settings need to be saved manually.

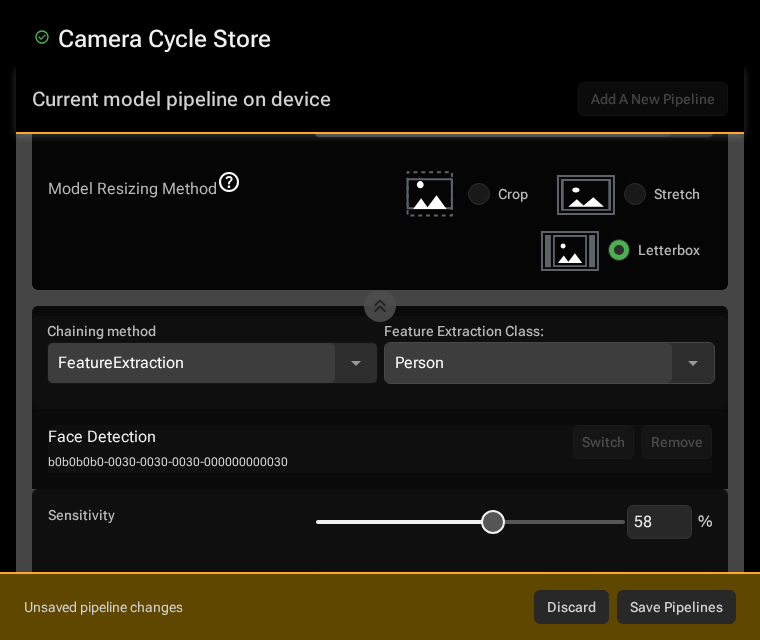

A model pipeline form with changed settings that are not saved yet

Click Save Pipelines to save the settings, or click Cancel Changes to discard them. Navigating away from the device details page also resets the form without saving.

Model Sensitivity

The sensitivity slider controls the NMS Threshold (Non Max Suppression). This sets the cut off for when models should not return detections with a probability score below the current threshold value.

This is a setting that is model dependent, so not all models have this option.

Preprocessor

If the server that the device is connected to has any preprocessors available, they can be selected here.

This setting is server-dependent: moving a device to another server may change the available options.

Additional settings for preprocessors may appear on the plugin settings screen depending on the chosen option.

Postprocessor

If the server that the device is connected to has any postprocessors available, they can be selected here.

This setting is server-dependent: moving a device to another server may change the available options.

Additional settings for postprocessors may appear on the Postprocessors screen depending on the chosen option.
